VM-PL C200
– 🔄 **360° x 270° Scanning** – Captures full spatial point cloud
– 🎯 **Up to 200m Range** – Measures large stockpiles and vehicle loads with ±20mm accuracy
– ❄️ **Anti-Fog, Self-Heating Design** – Operates reliably in cold, dusty, and foggy environments
– 🛡️ **IP67/IP68 Industrial Protection** – Dust-proof, waterproof, and built for tough outdoor conditions
– ⚡ **High-Frequency Scanning (100Hz)** – Suitable for fast-moving objects and dynamic scenes
Design
Engineered for Accuracy. Built for Industry.
Parameter
VM-PL C200
Scanning Angle
270°*360°
Detection Range
0.1-200m
Scan Rate
25/50/100Hz
Angular Resolution
0.0625/0.125/0.25°
Laser divergence angle
6±1mrad
Accuracy
±20mm
Synchronous signal
SYNC*1
Operating Temp
-20°C～+55°
Humidity Tolerance
0%～95%
Power consumption
Typical ≤18W, heating ≤58W
Operating voltage
24V DC
Light Resistance
80000lx
Impact resistance
IEC 60068-2-27
Electromagnetic compatibility
IEC 61000-6-4/IEC 61000-6-2
Protection Rating
IP67/IP68

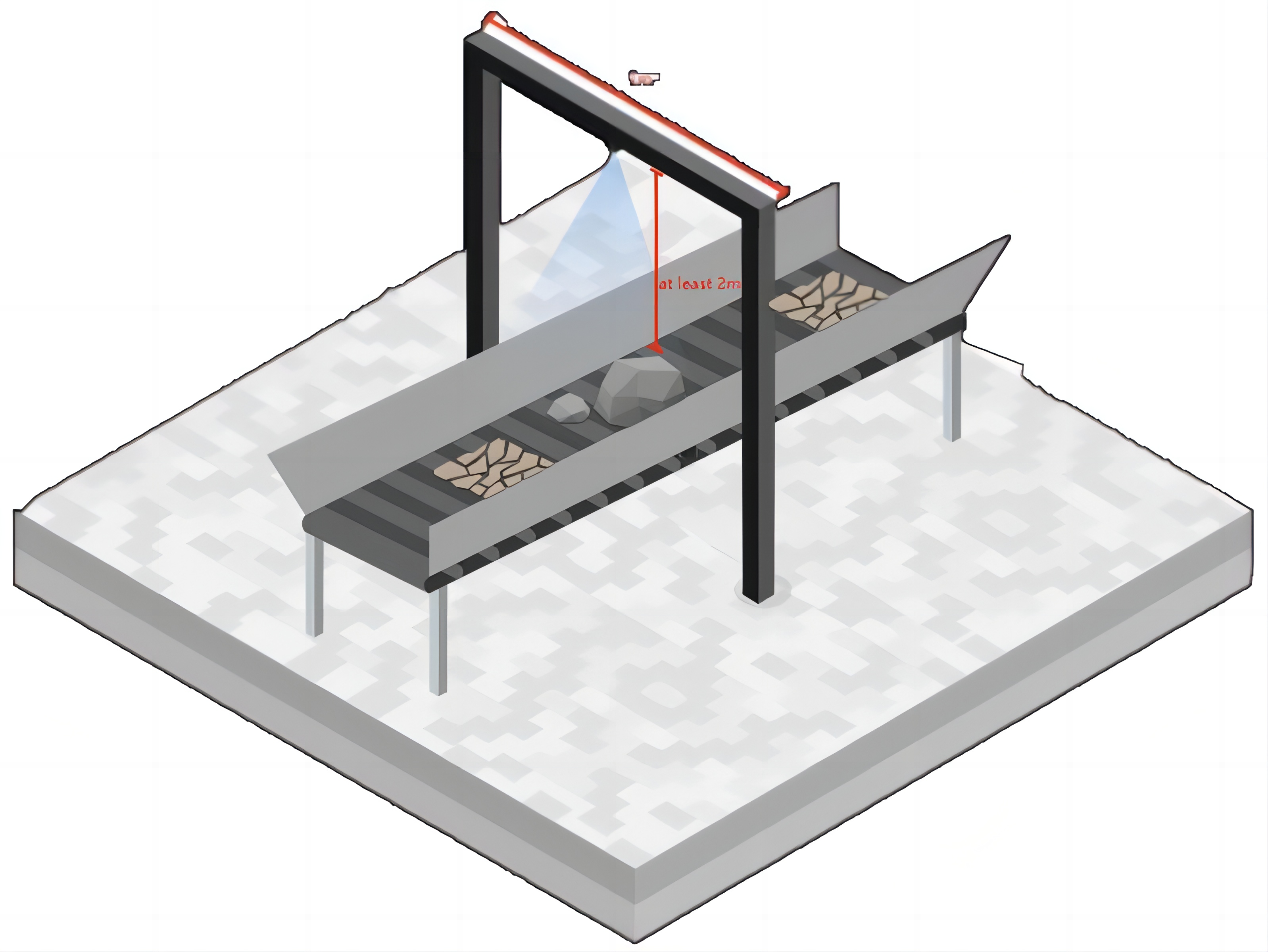

Application
Smart Applications
Talk to Our Experts Today
Need a custom LiDAR solution? Our engineers are here to support your industrial project.
