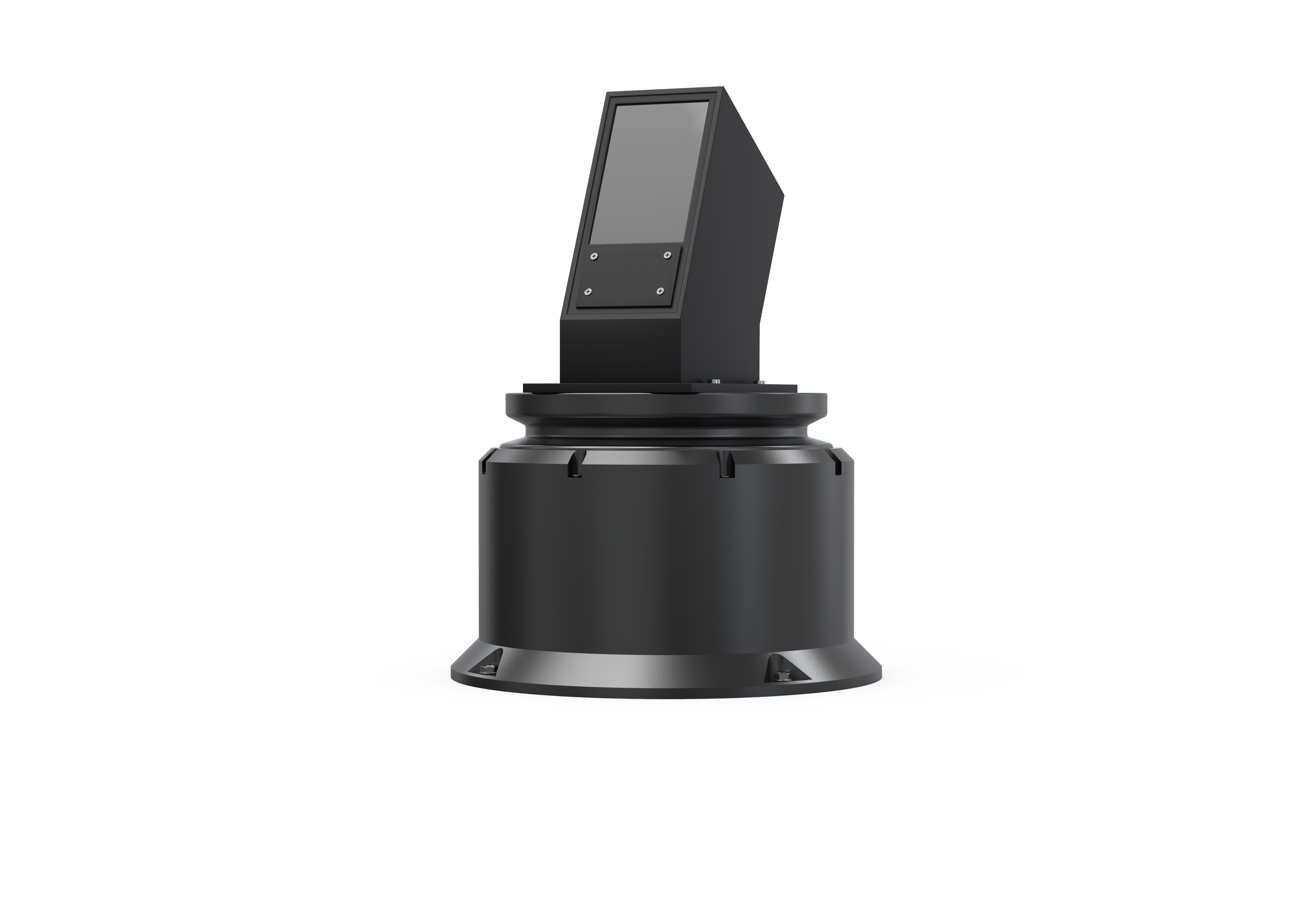

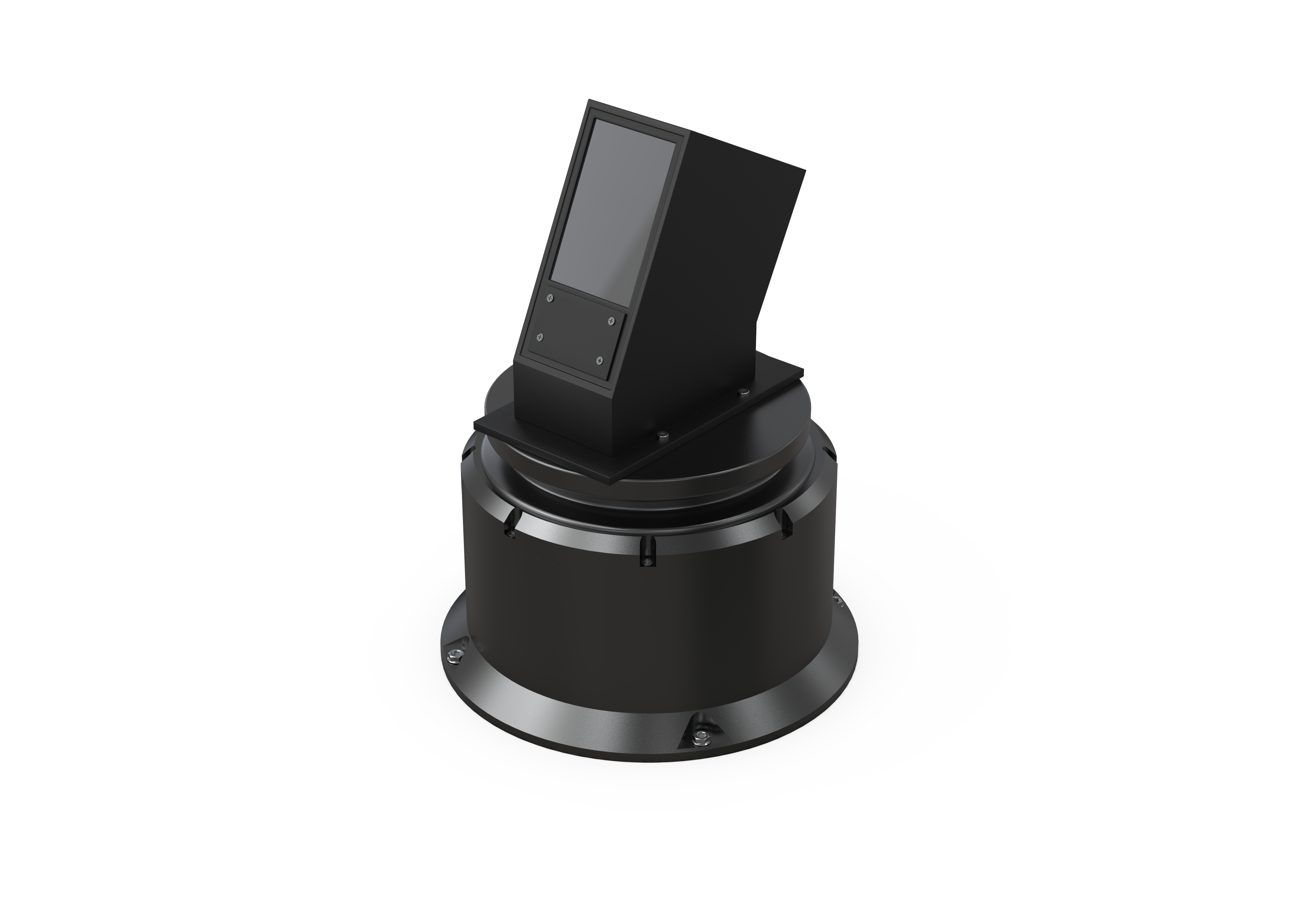

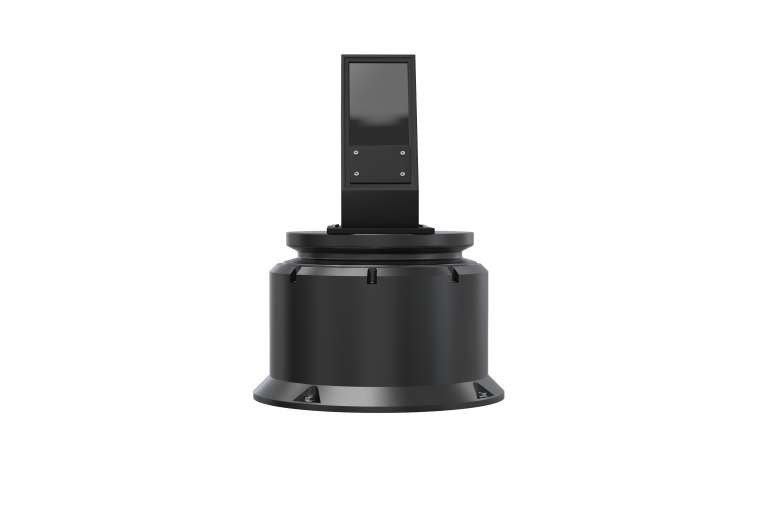

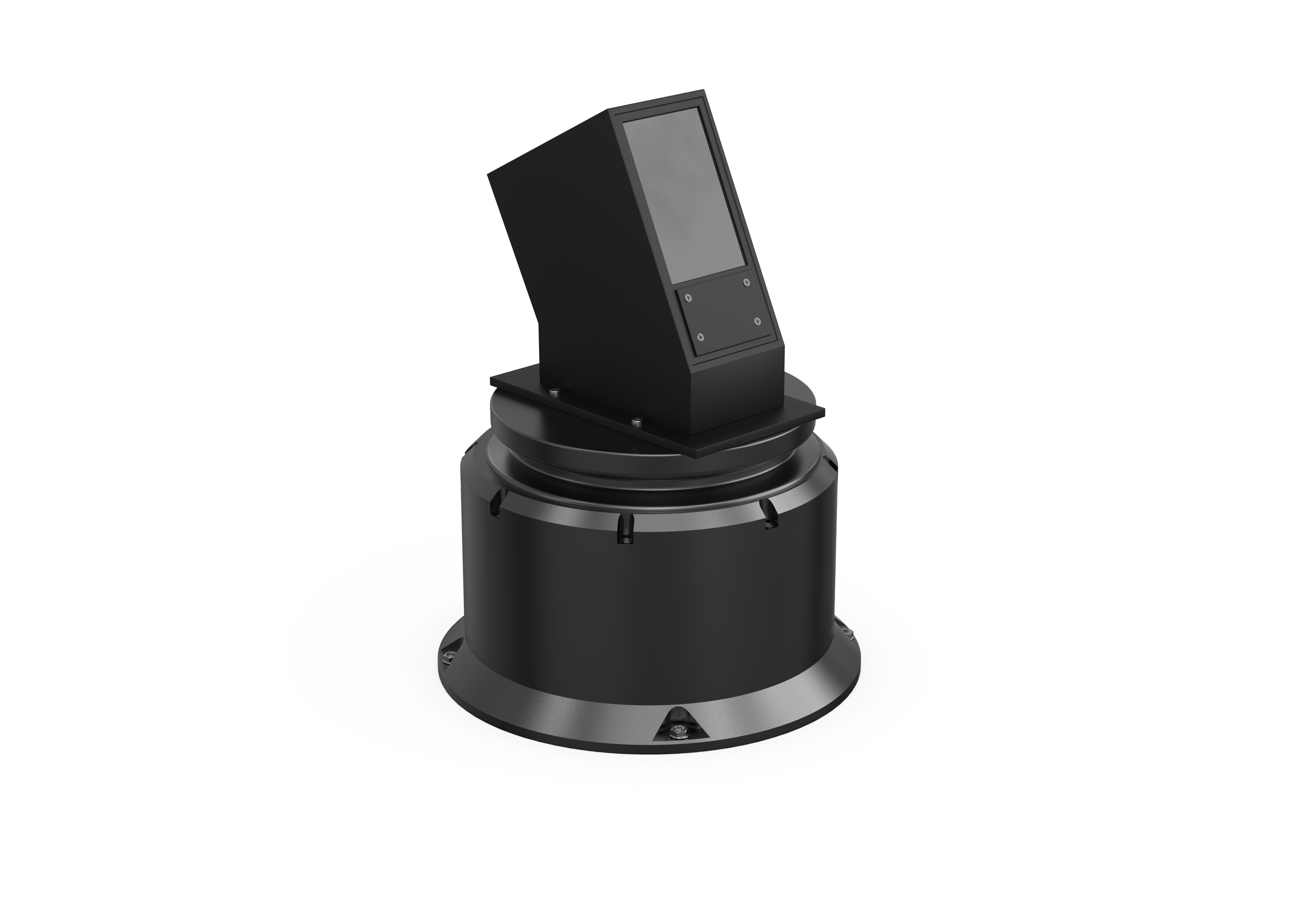

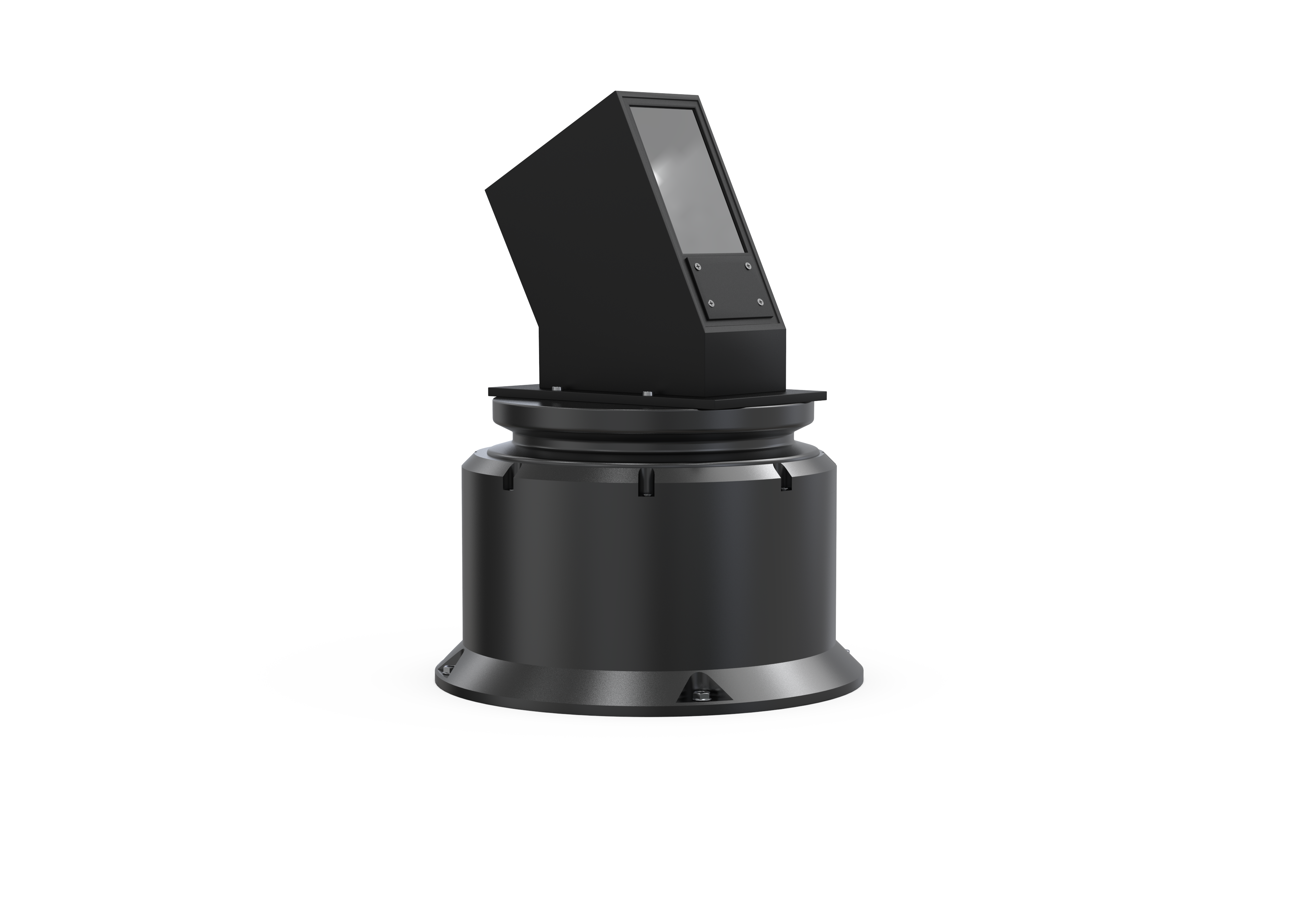

CP-L260
The CP-L260 Series is a high-performance 3D laser scanner engineered by Vi LiDAR Technology for complex outdoor environments. It features a built-in heating module for reliable operation in low temperatures and proprietary filtering algorithms that suppress interference from direct sunlight and reflective surfaces.
Its intelligent point cloud filtering system keeps false detections below 0.01%, ensuring exceptional accuracy and data reliability. The CP-L260 is ideal for outdoor stockpile monitoring, port logistics, environmental sensing, and high-precision 3D modeling under extreme weather conditions.
Design
Engineered for Accuracy. Built for Industry.
Parameter
CP-L260
Scanning Angle
120° × 360°
Detection Range
150 m @ 10% reflectivity; 260 m @ 90% reflectivity
Scan Rate
10Hz
Angular Resolution
< 0.1°
Laser divergence angle
0.03°
Accuracy
±30 mm @ 20 m
Synchronous Method
gPTP
Data Sampling Rate
452 kHz
Operating Temperature
-40°C to +85°C
Operating Humidity
0% – 95%
Power Consumption
12 W
Operating Voltage
24V DC
Data Output
Distance, angle, echo intensity, timestamp
Vibration Resistance
IEC 60068-2-6 compliant
Protection Rating
IP65
