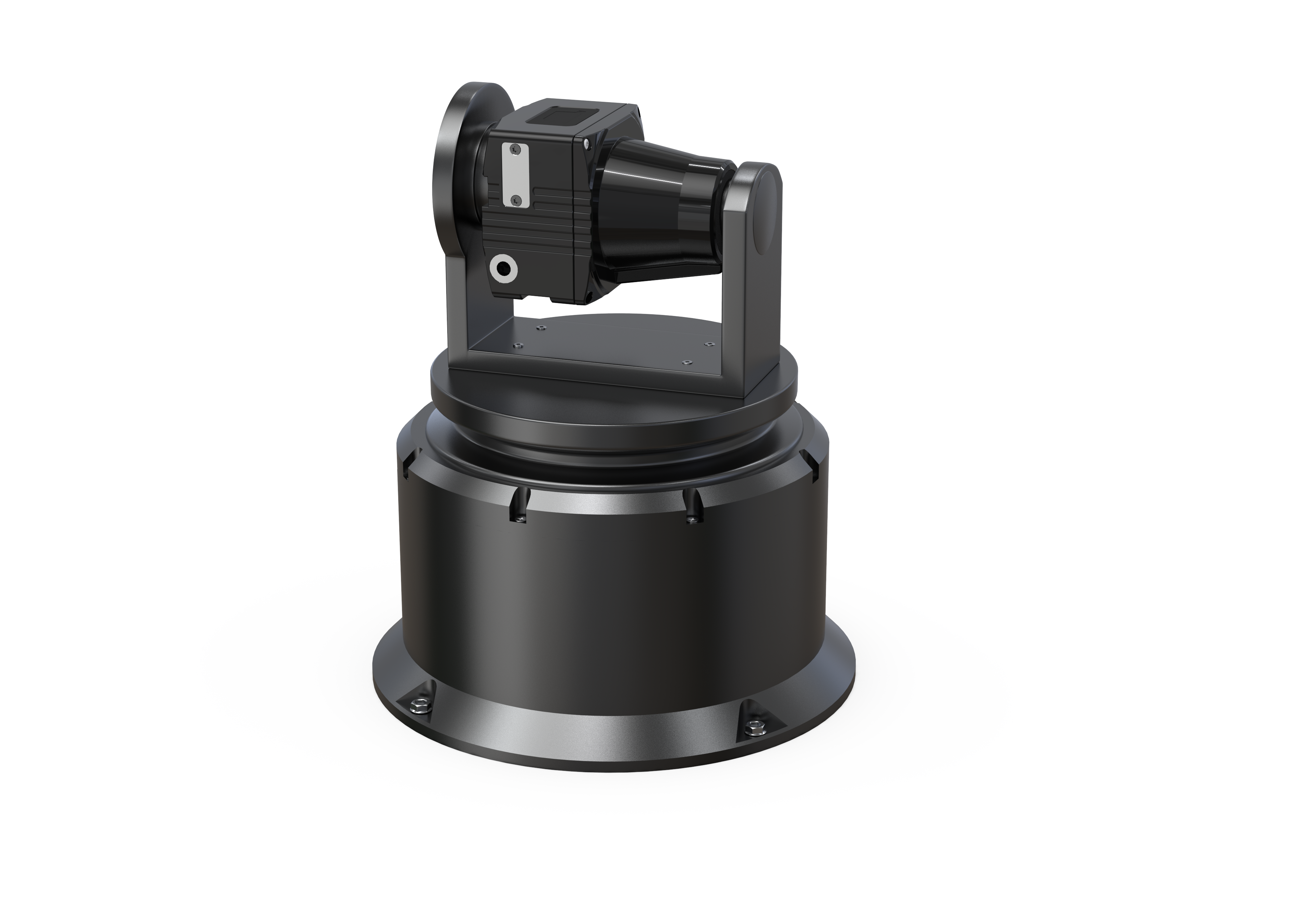

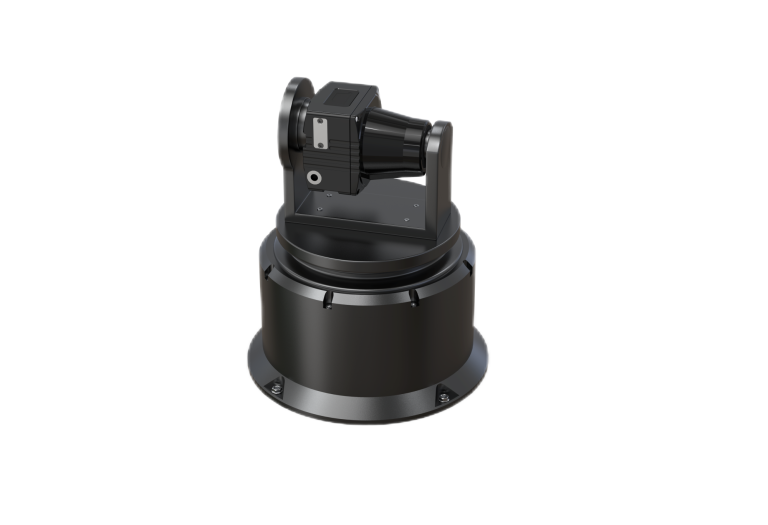

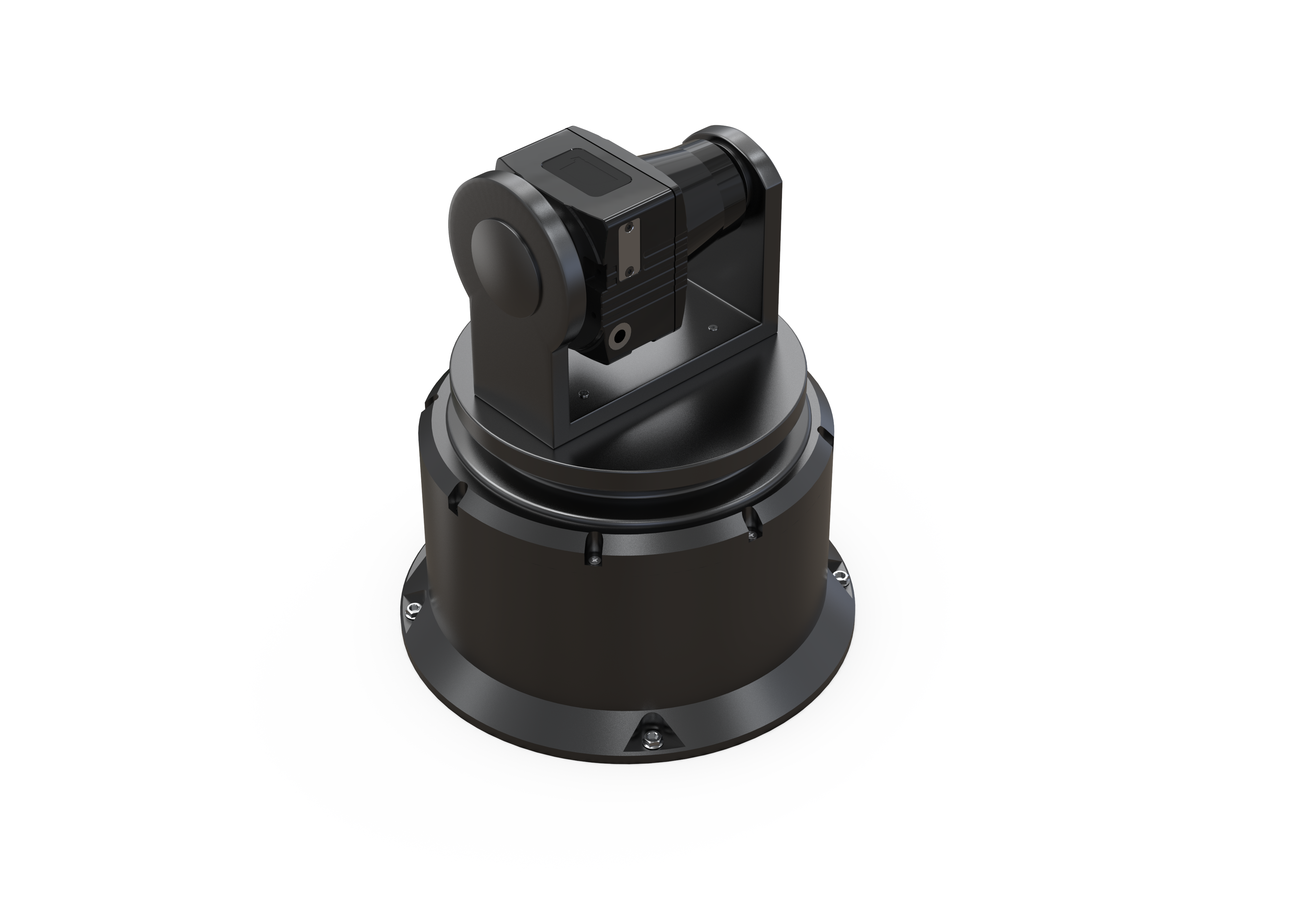

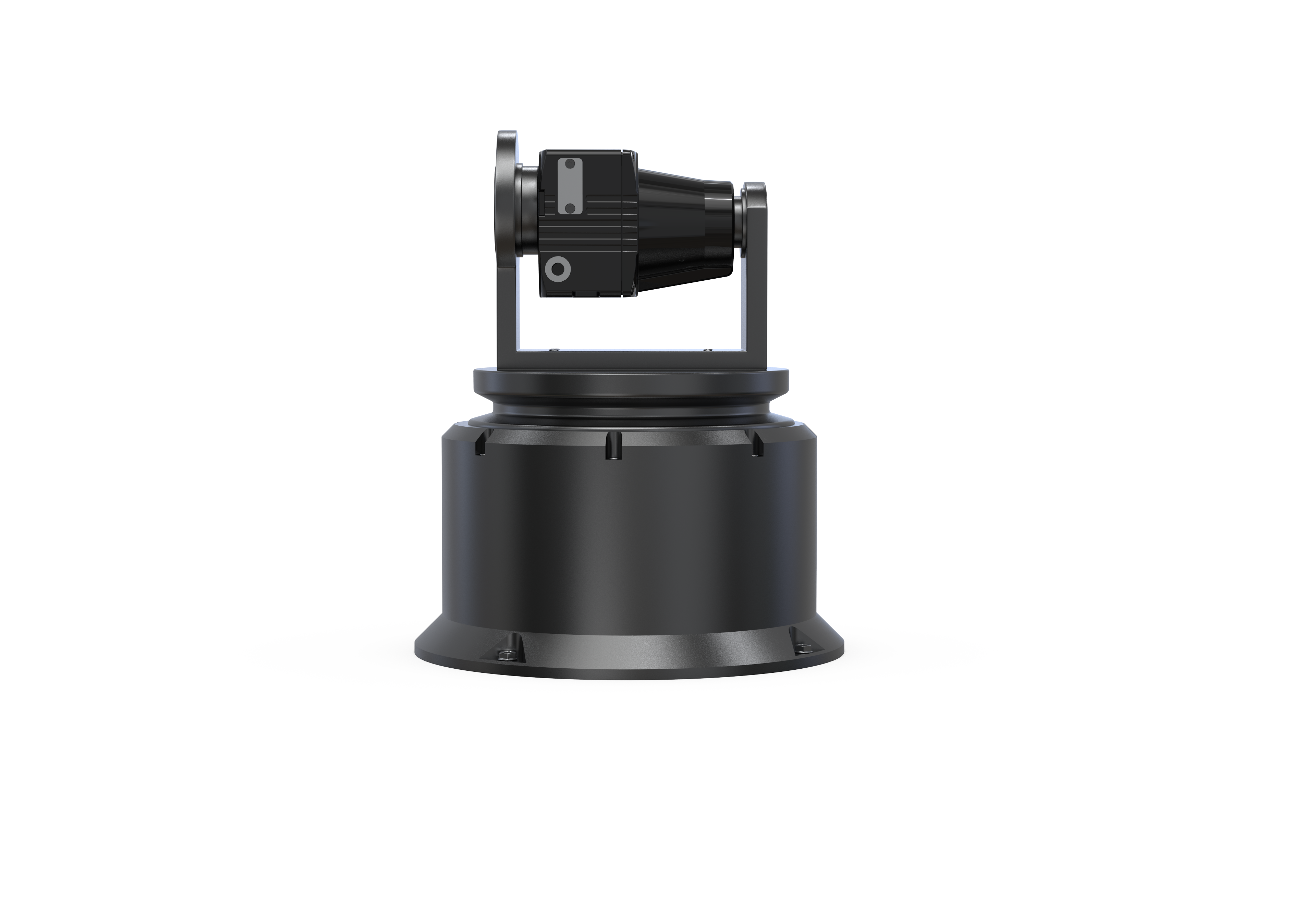

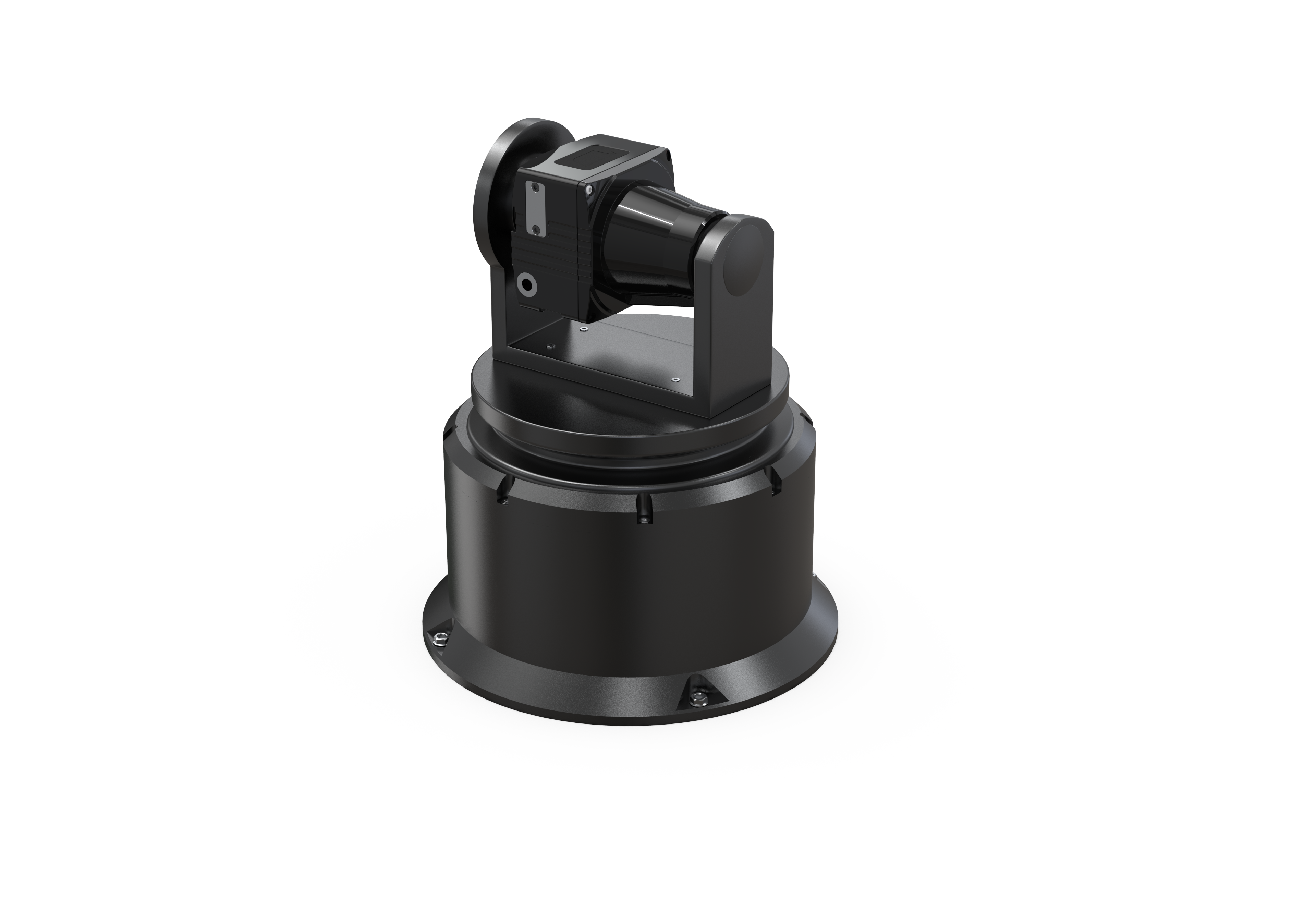

CP-L40
The CP-L40 Series is a cost-effective 3D scanner designed for high-reflectivity indoor targets. It integrates LiDAR with a rotary platform to capture accurate and stable 3D point clouds during horizontal sweeps. Ideal for low-light environments such as automated warehouses, material stacking, and smart sorting, the CP-L40 delivers high precision with lower deployment costs.
Design
Engineered for Accuracy. Built for Industry.
Parameter
CP-L40
Scanning Angle
270°*360°
Detection Range
20m@10%; 40m@90%
Scan Rate
10/20/25/30Hz(configurable)
Angular Resolution
0.1/0.25°
Principle
dToF
Accuracy
±20mm
Operating Temp
–25°C to +60°C (core sensor), –20°C to +55°C (system level)
Sampling Rate
43.2 kHz
Operating Humidity
0% to 95% (non-condensing)
Power Consumption
≤18 W (typical), ≤58 W (with heater enabled)
Power Supply
24V DC
Data Output
Distance, angle, echo intensity, timestamp
Data Transmission
UDP/IP
Protection Rating
IP65 (dust-tight and water-resistant)
Application
Smart Applications
