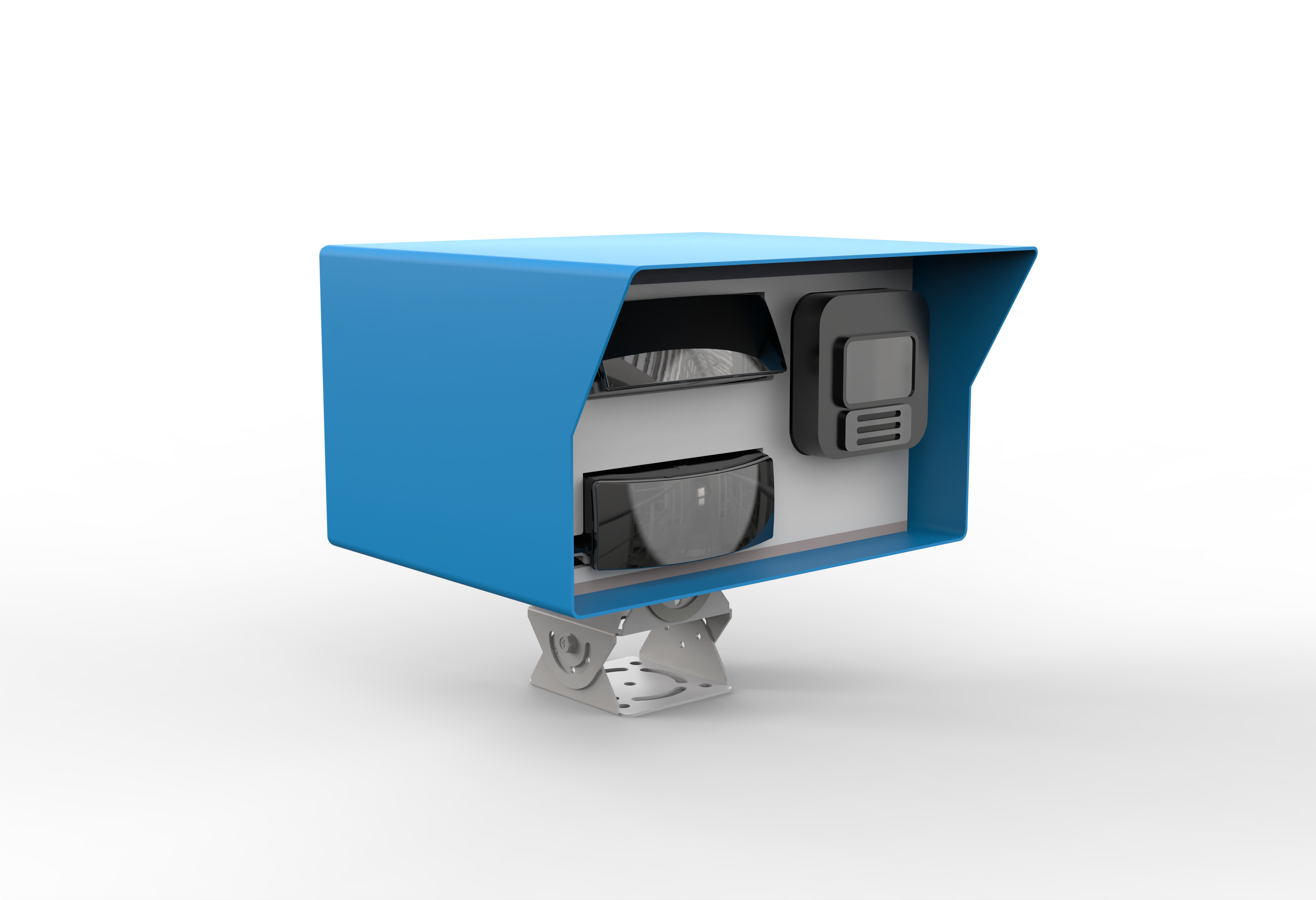

CPL Fu50
The CPL Fu50 is a next-gen 3D LiDAR sensor with built-in 4K RGB camera and advanced sensor fusion capabilities. Designed for harsh environments, it delivers reliable, high-frequency scanning up to 100 meters with real-time AI processing support.
Design
Precision Meets Intelligence
Precision Meets Intelligence
Parameter
CPL Fu50
Field of View
H120°.V50°
Scanning Distance
Up to 100m (±5cm @1σ accuracy)，accuracy：±5cm@1 sigma
RGB Camera
3840(H)x 2160(V)，25fps，H.264，H.265，MJPEG
Power Supply
200-250V AC
Working Temperature
-40°C to 65°C, 90% RH
Interface
Ethernet
API
1. Basic LiDAR configuration, IP address, multicast, host IP address;
2. Online access to LiDAR point cloud data, and coordinate transformation x, y, z, roll, pitch, yaw;
3. Offline parsing of PCAP data packets.
4. Point cloud frame segmentation by angle, fixed number of blocks, number of blocks in a frame;
5. Query the current playback timestamp of video playback;
6. GPU hardware decoding;
7. Point cloud-video fusion frame access, playback;
2. Online access to LiDAR point cloud data, and coordinate transformation x, y, z, roll, pitch, yaw;
3. Offline parsing of PCAP data packets.
4. Point cloud frame segmentation by angle, fixed number of blocks, number of blocks in a frame;
5. Query the current playback timestamp of video playback;
6. GPU hardware decoding;
7. Point cloud-video fusion frame access, playback;
Power Consumption:
78w
Weight
<8kg
Application
Smart Applications
Factory Safety
Factory Safety
Perimeter and zone monitoring
Learn More
Smart Parking Systems
Smart Parking Systems
Vehicle presence detection
Learn More
Smart Warehousing
Smart Warehousing
Real-time stockpile and material tracking
Learn More
Talk to Our Experts Today
Need a custom LiDAR solution? Our engineers are here to support your industrial project.
